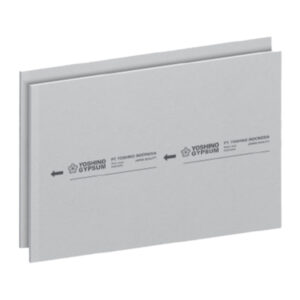

Regular Board
Standard type of gypsum board, suitable for ceilings, partitions, and wall cladding.
Available size :
1200x2400x9mm
1200x2400x12mm
Moisture Resistance
Board
Gypsum board that contains a water repellent agent and designed to be resistant to high humidity for a certain period of time.
Available size :
1200x2400x9mm
1200x2400x12mm

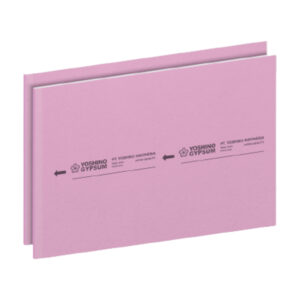

Fire Resistance Board
Gypsum board that has excellent fire resistance, used for fire-resistant wall systems.
Available size :
1200x2400x9mm
1200x2400x12mm
600x2400x21mm
Hi-Clean Board
Gypsum board that contributes to air quality improvement by absorbing and decomposing the hazardous material from formaldehyde.
Available size :
1200x2400x9mm
1200x2400x12mm
Super Hard Board
Gypsum board that has strength and hardness on its surface.
Available size :
1200x1800x9mm
1200x1800x12mm

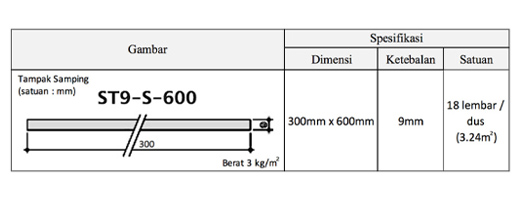

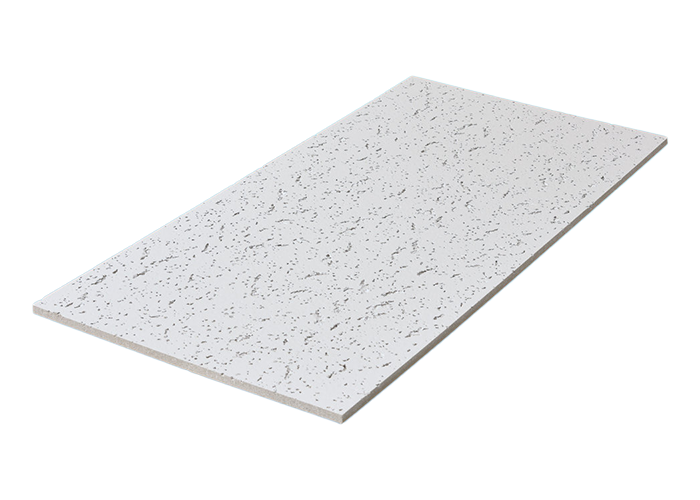

SOLATON
Product made from rockwool as the main raw material, in an integerated manufacturing facility which has excellent non combustibility characteristic of high quality
Sound Absorption
Absorb harsh reverbrated sound and provides quiet indoor environment
Non-combustibility
Certified as nonflammable according to regulations.(MLITNM-8599)
JIS Certified
Approved to JIS A 6301 standard which has a sound- absorbing function
Eco Mark Cerified
Recognised by the japan environment association
Cornice Compound 2 in 1
Applied to fill the gap between the gypsum board with perfect results without cracks (jointing).
GL Bond
Adhesive between gypsum board and conventional wall with the stick on wall method.
Yoshino Metal System Ceiling 35 & 45

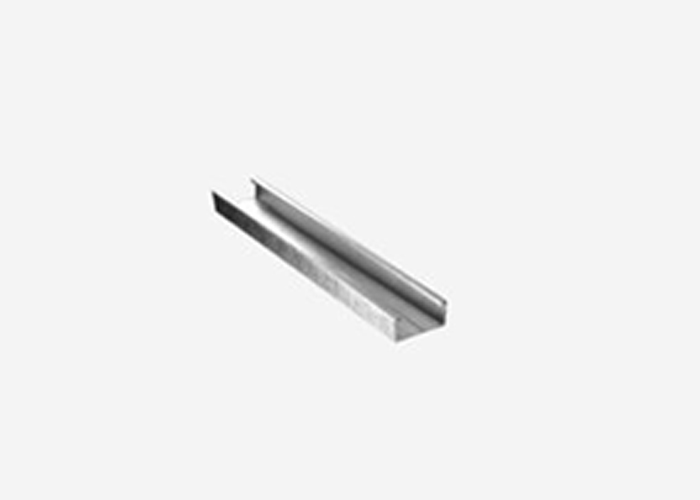

Channel 35
Dimension : 35x16x400mm
Thickness : 0.35mm

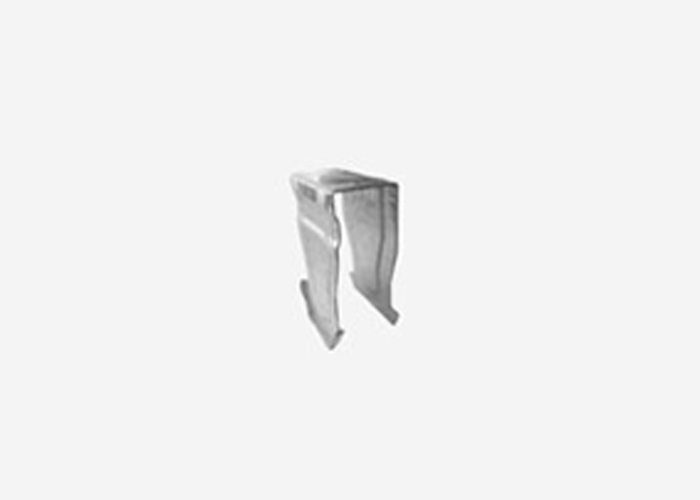

Connector Clip 35
Dimension : 16x49x33mm
Thickness : 0.7mm

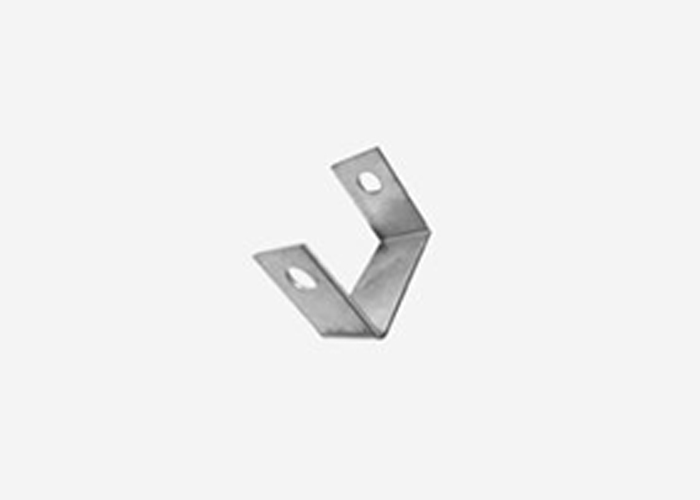

Hanger Clip 35
Dimension : 30x35x17mm
Thickness : 1.2mm

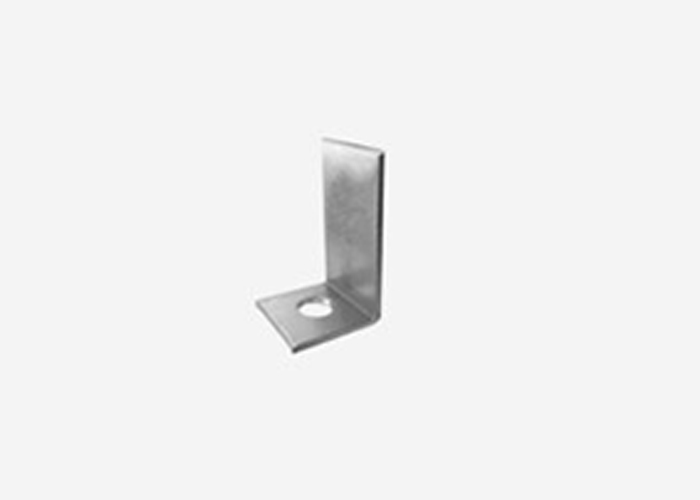

Angle Bracket
Dimension : 18x18x35mm
Thickness : 1.5mm

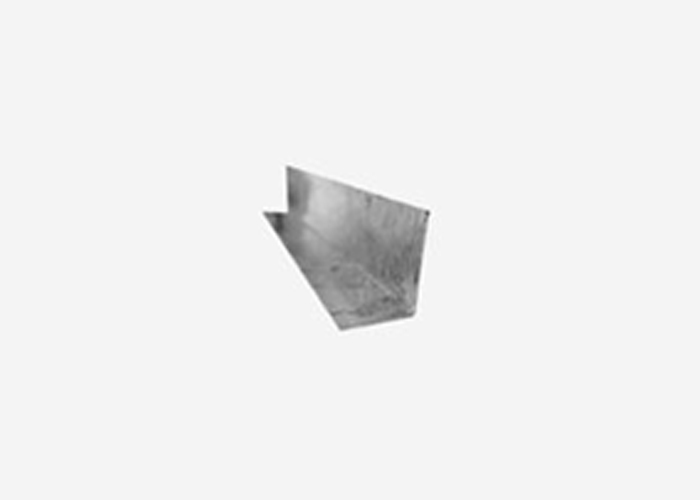

Wall Angle
Dimension : 18x18x3000mm
Thickness : 0.3mm

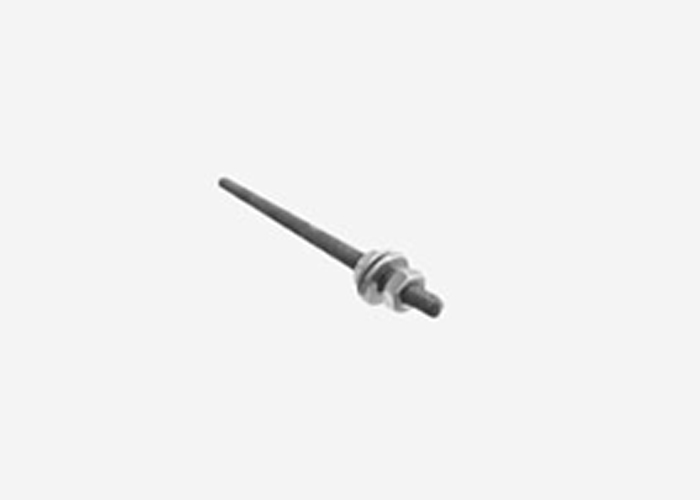

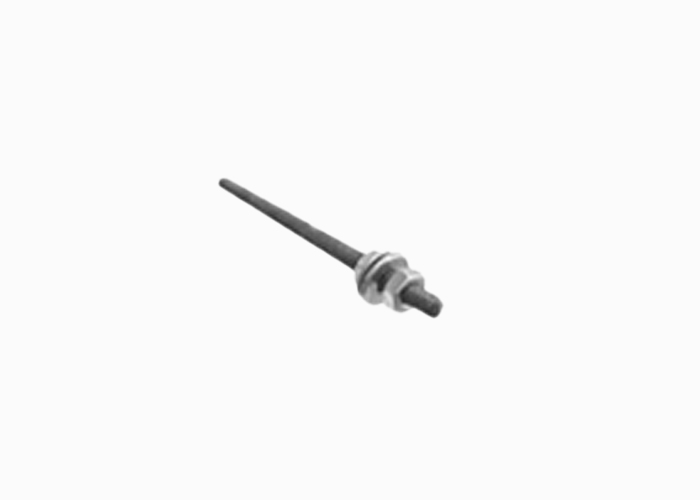

Rod Drat M4
Height : 1000 – 2500mm
other than 1000mm MTO
Channel 45
Dimension : 45x16x400mm
Thickness : 0.35mm
Connector Clip 45
Dimension : 16x59x43mm
Thickness : 0.7mm
Hanger Clip 45
Dimension : 30x45x17mm
Thickness : 1.2mm
Angle Bracket
Dimension : 18x18x35mm
Thickness : 1.5mm
Wall Angle
Dimension : 18x18x3000mm
Thickness : 0.3mm
Rod Drat M4
Height : 1000 – 2500mm
other than 1000mm MTO
Yoshino Metal System Partition

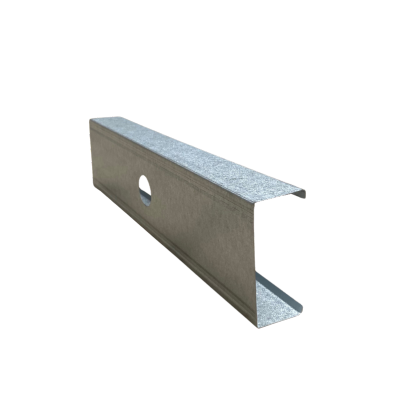

Metal Stud
Yoshino Partition Frame
SPESIFICATION
THICKNESS
Ketebalan Rangka Sesuai Standar ASTM: 0.5mm BMT dan 0.7mm BMT
MEASUREMENTS
50 x 35 [33] x 3000mm
75 x 35 [33] x 3000mm
100 x 35 [33] x 3000mm
150 x 35 [33] x 3000mm (0.7mm BMT)
RECOMMENDED INSTALLATIONS
• Data Center
• Fabric
• Hotel
• Office
• Apartment
Fire Resistance (Frame Thickness min 0.5 mm BMT)
BENEFITS
Easy and Fast Installation
SNI-Based
Frame profile size according to ASTM
Guarantee (terms and condition apply)

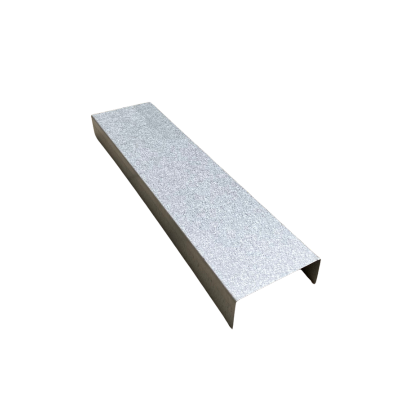

Track
Yoshino Partition Frame
SPESIFICATION
THICKNESS
Ketebalan Rangka Sesuai Standar ASTM: 0.5mm BMT dan 0.7mm BMT
MEASUREMENTS
50 x 30 [30] x 3000 mm
75 x 30 [30] x 3000 mm
100 x 30 [30] x 3000 mm
150 x 30 [30] x 3000 mm, 150 x 30 [30] x 3000 mm (Track Atas)
RECOMMENDED INSTALLATIONS
• Data Center
• Fabric
• Hotel
• Office
• Apartment
Fire Resistance (Frame Thickness min 0.5 mm BMT)
BENEFITS
Easy and Fast Installation
SNI-Based
Frame profile size according to ASTM
Guarantee (terms and condition apply)

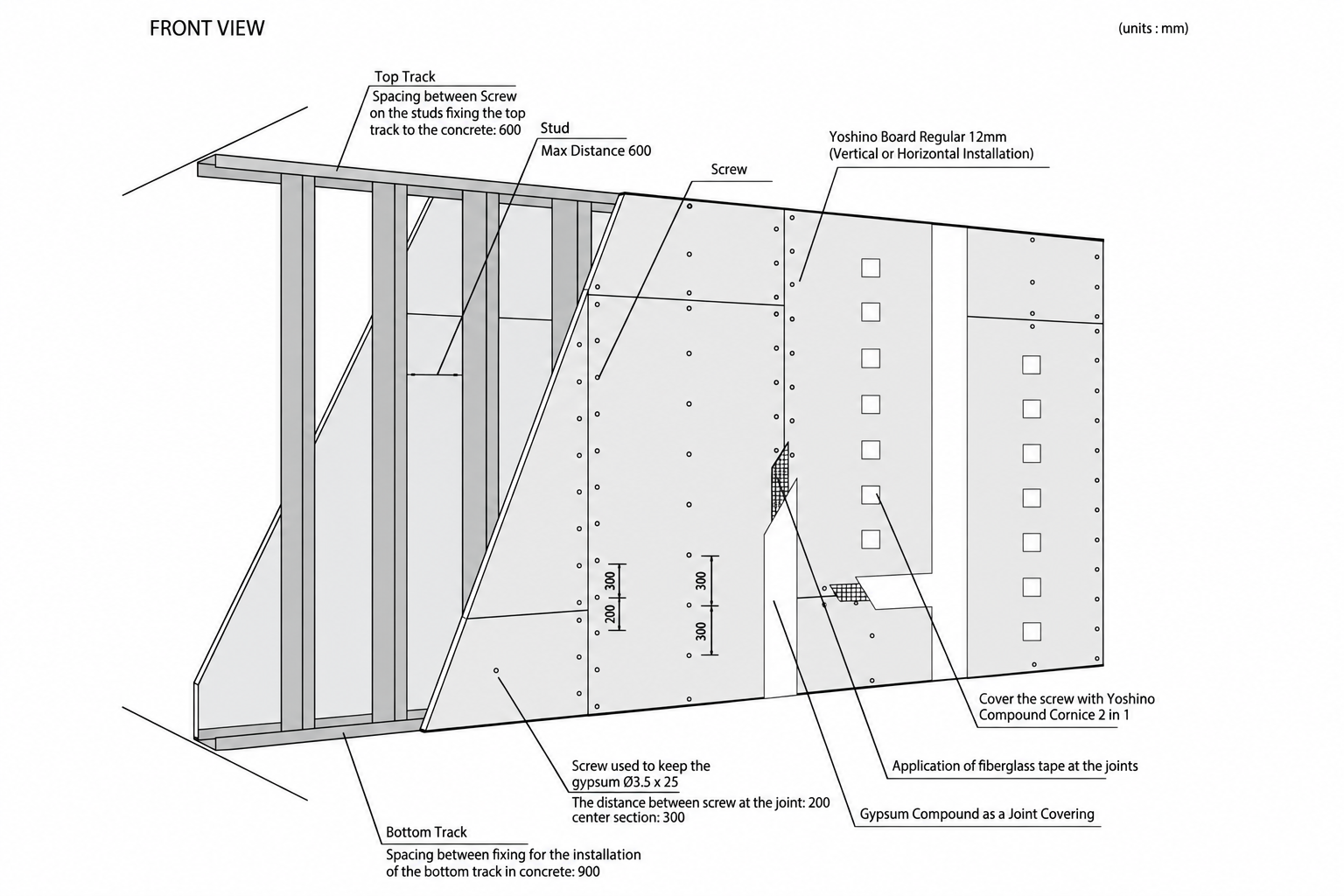

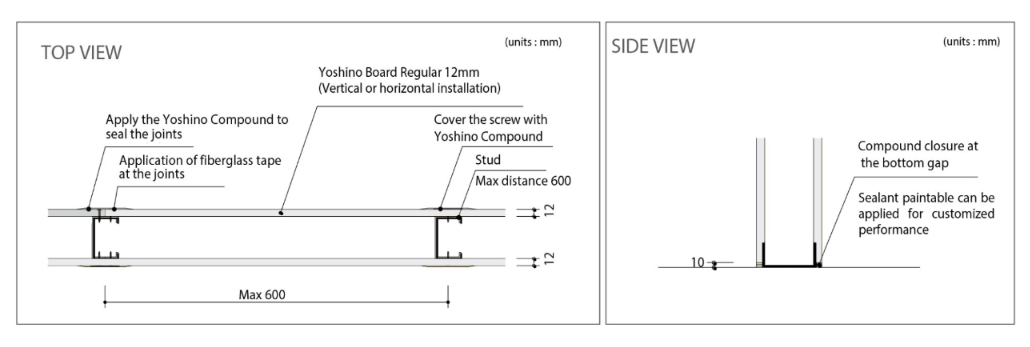

STANDARD PARTITION
